440ST Main Assembly RF037200

To purchase parts for the 440ST (Main Assembly RF037200):

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

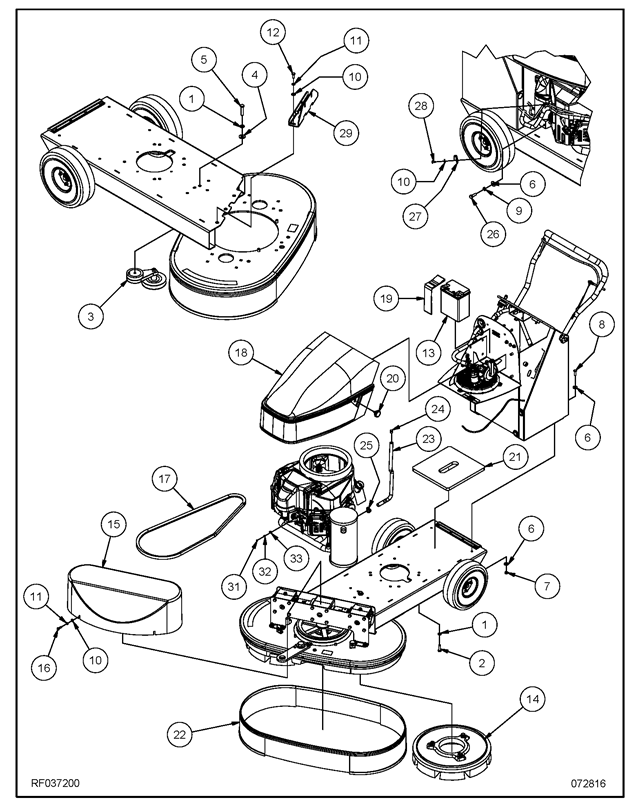

440ST Main Assembly RF037200 1

Item	Part Number	Description	QTY		Item	Part Number	Description	QTY
1	MX1075	WASHER, LOCK, 3/8”	5		16	NB6530	BOLT, HEX, 1/4” X 1”	3
2	NB6044	BOLT, HEX, 3/8” X 1-1/4”	4		17	MP402100	BELT, BX-62	1
3	MP071800	TENSIONER, BELT	1		18	MP375800	HOOD, ASM.	1
4	NB3450	WASHER, FLAT, 3/8”	1		19	MP368100	STRAP, 2” X 23”	1
5	NB024500	BOLT, HEX, 3/8” X 1-3/4”	1		20	MP372600	KNOB, 1/4”	2
6	NB9267	WASHER, FLAT, 5/16”	9		21	MP470300	PAD, TANK	1
7	NB3265	NUT, LOCK, 5/16”	4		22A	BA014500	SKIRT, SPLASH (30”)	1
8	NB6545	BOLT, HEX, 5/16” X 1”	4		22B	BA014700	SKIRT, SPLASH (38”)	1
9	NB6111	WASHER, LOCK, 5/16”	1		23	MP4515	TUBING, OIL DRAIN	20”
10	NB3350	WASHER, FLAT, 1/4”	7		24	NB1621	PLUG, TUBING	1
11	NB6110	WASHER, LOCK, 1/4”	6		25	NB7282	CLAMP, HOSE, 3/8”	1
12	NB019100	BOLT, HEX, 1/4” X 3/4”	3		26	NB065100	BOLT, HEX, M8 X 25MM	1
13	MP362200	BATTERY, 12V	1		27	NB8125	CLAMP, HOSE, 1/4”	1
14A	BA013000	BRUSH, 16” (30”)	2		28	NB064900	SCREW, #10 X 1/2”	1
14B	BA013500	PAD HOLDER, 16” (OPTIONAL)	2		29A	MP391400	BRACE, GEARBOX (30”)	1
14C	BA012800	BRUSH, 20” (38”)	2		29B	MP391500	BRACE, GEARBOX (38”)	1
14D	BA013700	PAD HOLDER, 20” (OPTIONAL)	2		30	MP105900	CYLINDER, LP (NOT SHOWN)	1
14E	MP8505	RETAINER, PAD (PAD HOLDER)	1		31	NB007000	NUT, LOCK, #4	1
15A	BA018100	COVER, GEARBOX (30”)	1		32	NB007100	WASHER, FLAT, #6	1
15B	BA017700	COVER, GEARBOX (38”)	1		33	NB012300	WASHER, LINKAGE	1
