250ST Handle Assembly - 230V RF071500

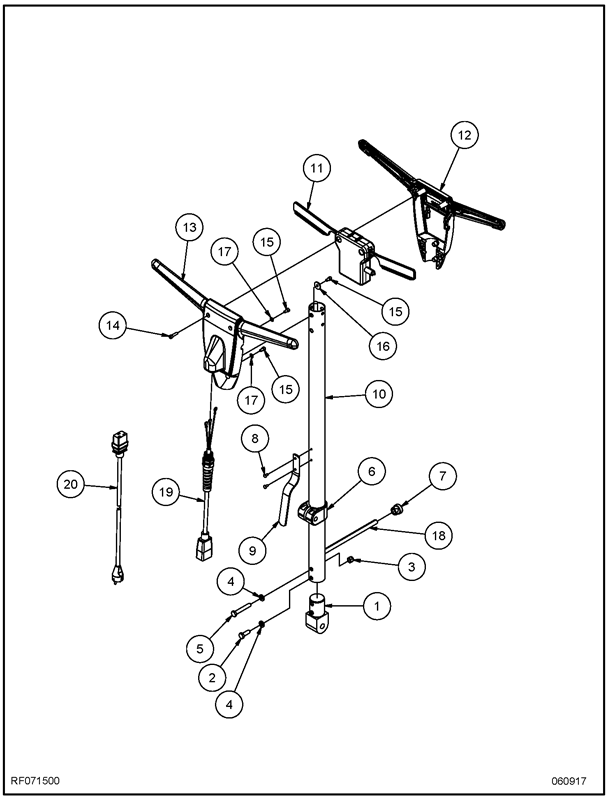

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	QTY	Item	Part Number	Description	QTY
1	509240	TONGUE, HANDLE TUBE	1	12	21074A	HANDLE, FRONT - CFP	1
2	85812A	SCREW 5/16-18 X 7/8 HEX HD GR5	1	13	21075A	HANDLE, REAR - CFP	1
3	920110	NUT, 5/16-18 HEX LOCK	1	14	80284A	SCREW, 10-32 UNF X .75	6
4	980652	WASHER, LOCK, 5/16	2	15	80290A	SCREW, 10-32 UNF X .375	3
5	85817A	SCREW, HEX, 5/16-18 X 7/8, GD 5	1	16	80291A	WASHER, FLAT, #10	1
6	442001	CLAMP - HANDLE TUBE	1	17	980603	WASHER, LK 10 EXT TOOTH	2
7	627561	STRAIN-RELIEF	1	18	10250A	CORD, INTERCONNECT, ASM.	1
8	930005	RIVET, 5/32 X 3/8 POP	2	19	MP512000	CORD, PIGTAIL, HANDLE, EXPORT, IEC	1
9	64325A	HOOK, CORD	1	20A	MP514000	CORD, POWER SUPPLY, AUSTRALIAN, IEC	1
10	61825A	TUBE, HANDLE	1	20B	MP513000	CORD, POWER SUPPLY, CE, IEC, RED	1
11	10687A	INTERLOCK ASM.	1
