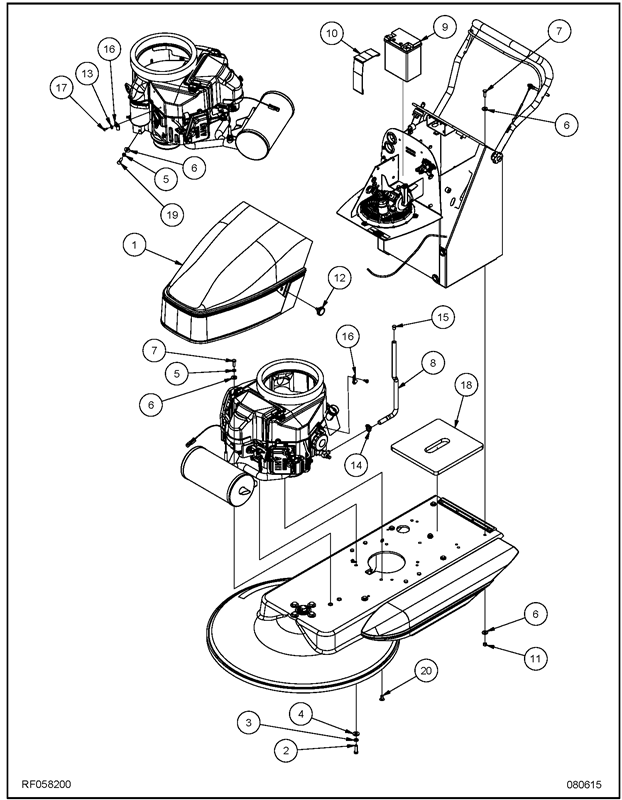

To purchase parts for the 440BU (Main Assembly RF058200):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | | Item | Part Number | Description | QTY |
| 1 | MP375800 | HOOD, BLACK, ASM. | 1 | | 11 | NB3265 | NUT, LOCK, 5/16” | 4 |
| 2 | NB6044 | BOLT, HEX, 3/8” X 1-1/4” | 3 | | 12 | MP372600 | KNOB, 1/4” X 1/2” | 2 |
| 3 | MX1075 | WASHER, LOCK, 3/8” | 3 | | 13 | NB3350 | WASHER, FLAT, 1/4” | 1 |
| 4 | NB3450 | WASHER, FLAT, 3/8” | 3 | | 14 | NB7282 | CLAMP, HOSE | 1 |
| 5 | NB6111 | WASHER, LOCK, 5/16” | 3 | | 15 | NB1621 | PLUG, CAP | 1 |
| 6 | NB9267 | WASHER, FLAT, 5/16” | 11 | | 16 | NB8125 | CLAMP, 1/4” | 2 |
| 7 | NB6545 | BOLT, HEX, 5/16” X 1” | 6 | | 17 | NB064900 | SCREW, #10 X 1/2” | 1 |
| 8 | MP4515 | TUBING, OIL DRAIN | 20” | | 18 | MP470300 | PAD, TANK | 1 |
| 9 | MP362200 | BATTERY, 12, AGM | 1 | | 19 | NB065100 | BOLT, HEX, M8 X 25 | 1 |
| 10 | MP368100 | STRAP, 2” X 23” | 1 | | 20 | NB065800 | PLUG, HOLE, 5/16” | 1 |
