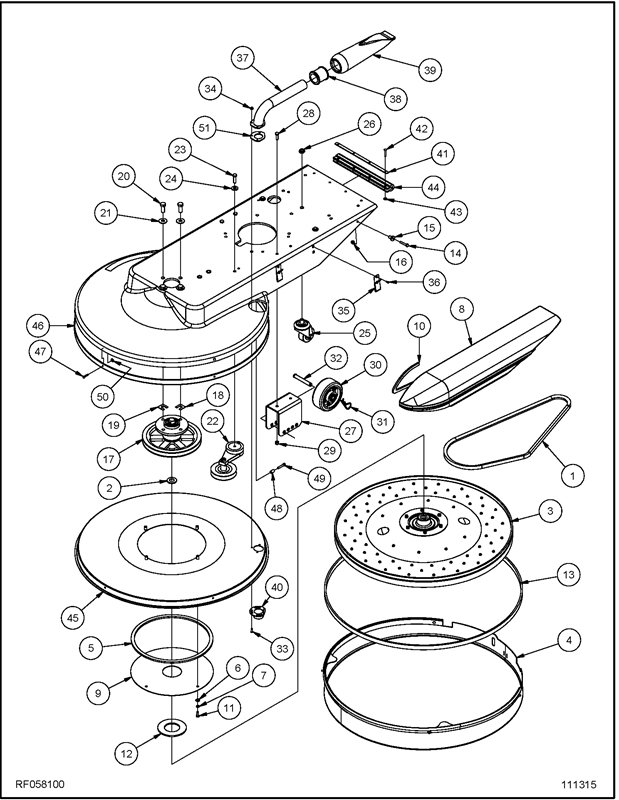

To purchase parts for the 440BU (Deck Assembly RF058100):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | QTY | |
| 1A | MP272900 | BELT, BX-57 (28”) | 1 | 23 | NB6044 | BOLT, HEX, 3/8” X 1-1/4” | 1 | |
| 1B | MP8049 | BELT, BX-49 (24”) | 1 | 24 | NB3450 | WASHER, FLAT, 3/8” | 1 | |
| 1C | MP8070 | BELT, BX-46 (21”) | 1 | 25 | MP012801 | CASTER, 2-1/2” | 1 | |
| 2 | MP195300 | SPACER, BEARING | 1 | 26 | NB003100 | NUT, LOCK, JAM, 1/2” | 1 | |
| 3A | MP032500 | PAD HOLDER, 28”, ASM. | 1 | 27 | MP371501 | BRACKET, WHEEL, 5” X 2” | 2 | |
| 3B | MP047500 | PAD HOLDER, 24”, ASM. | 1 | 28 | NB6545 | BOLT, HEX, 5/16” X 1” | 4 | |
| 3C | MP095200 | PAD HOLDER, 21”, ASM. | 1 | 29 | NB3265 | NUT, LOCK, 5/16” | 4 | |
| 4A | MP139400 | SKIRT, 28”, ASM. | 1 | 30 | MP352600 | WHEEL, 5” X 2” | 2 | |
| 4B | MP139300 | SKIRT, 24”, ASM. | 1 | 31 | LX2105 | PIN, HITCH CLIP | 2 | |
| 4C | MP139200 | SKIRT, 21”, ASM. | 1 | 32 | NB053400 | PIN, CLEVIS, 1/2” X 3-1/2” | 2 | |
| 5 | MP075200 | FOAM, 1/2” X 38” | 1 | 33 | NB049200 | SCREW, BH, #10 X 5/8” | 3 | |
| 6 | NB3350 | WASHER, FLAT, 1/4” | 4 | 34 | NB9735 | NUT, LOCK, #10 | 3 | |
| 7 | NB6110 | WASHER, LOCK, 1/4” | 4 | 35 | NB017200 | CLIP | 2 | |
| 8 | MP067400 | COVER, BAG | 1 | 36 | NB045000 | RIVET, 5/32” | 4 | |
| 9A | MP068600 | COVER, PULLEY, 28” | 1 | 37 | MP469500 | TUBE, DUST | 1 | |
| 9B | MP073400 | COVER, PULLEY, 24” | 1 | 38 | MP469400 | GROMMET, 1.5” ID X 2” OD | 1 | |
| 9C | MP125300 | COVER, PULLEY, 21” | 1 | 39 | MP469300 | BAG, DUST | 1 | |
| 10 | MP075200 | FOAM, 1/2” X 38” | 1 | 40 | MP467600 | SCOOP, VACUUM | 1 | |
| 11 | NB019100 | BOLT, HEX, 1/4” X 3/4” | 4 | 41 | MP336200 | STRAP, BUMPER | 1 | |
| 12 | MP065100 | SEAL, SPINDLE | 1 | 42 | NB063400 | RIVET, 3/16” X 1” | 4 | |
| 13A | MP139600 | FELT, BLACK (28”) | 8 FT | 43 | NB9645 | WASHER, FLAT, #10 | 4 | |
| 13B | MP139600 | FELT, BLACK (24”) | 7 FT | 44 | MP371400 | BUMPER, ROK-BAK | 1 | |
| 13C | MP139600 | FELT, BLACK (21”) | 6.25 FT | 45A | MP481000 | LINER, SHROUD, 28”, ASM. | 1 | |
| 14 | NB9000 | BOLT, HEX, 1/4” X 1-1/2” | 1 | 45B | MP494700 | LINER, SHROUD, 24”, ASM. | 1 | |
| 15 | MP079800 | STUD, SUPPORT, COVER | 1 | 45C | MP477500 | LINER, SHROUD, 21”, ASM. | 1 | |
| 16 | NB3275 | NUT, LOCK, 1/4” | 1 | 46A | MP8300 | HOOK, VELCRO, 1” (28”) | 9 FT | |
| 17A | MP447700 | SPINDLE, 9.25”, ASM. | 1 | 46B | MP8300 | HOOK, VELCRO, 1” (24”) | 8 FT | |
| 17B | MP7235 | SPINDLE, 7.25”, ASM. | 1 | 46C | MP8300 | HOOK, VELCRO, 1” (21”) | 7 FT | |
| 17C | MP107700 | SPINDLE, 6.75”, ASM. | 1 | 47 | NB020600 | RIVET, 3/16” X 1/2” | 5 | |
| 18 | MP197100 | SHIM, 1/32” | 1 | 48 | MP139900 | BUSHING, SKIRT | 1 | |
| 19 | MP197000 | SHIM, 1/16” | 1 | 49 | NB038800 | BOLT, SH, 1/4” X 1-1/4” | 1 | |
| 20 | NB6864 | BOLT, HEX, 1/2” X 1-1/4” | 4 | 50 | NB9645 | WASHER, FLAT, #10 | 5 | |
| 21 | NB9269 | WASHER, FLAT, 7/16” | 4 | 51 | MP496500 | GASKET, DUST TUBE | 1 | |
| 22 | MP071800 | TENSIONER, BELT | 1 |
