To purchase parts for the 420BU (40" Deck Assembly RF038800):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

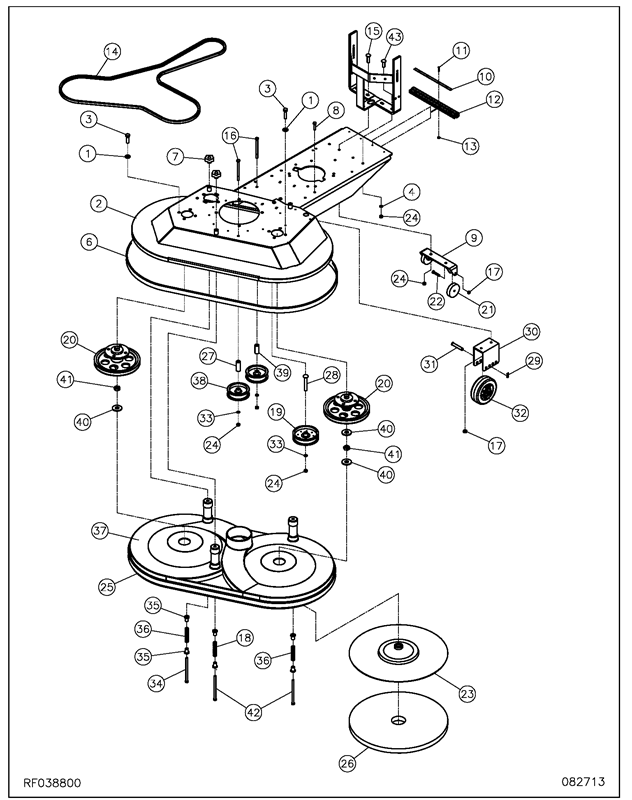

420BU_LT058000_40Deck Assembly RF038800 1

ItemPart NumberDescription QTY  ItemPart NumberDescription QTY
1NB9269WASHER, FLAT, 7/16”12 23MP269400PAD HOLDER, 21”2
2MP393100DECK, 40”1 -MP012700RETAINER, PAD (NOT SHOWN)1
3NB6864BOLT, HEX, 1/2” X -1-1/4”8 24NB3267NUT, LOCK, 3/8”2
4NB3450WASHER, FLAT, 3/8”3 25HH006000EDGING, FELT, SKIRT
5NB008900RIVET, 3/16”12 26N/AN/A2
6MP139700BUMPER, SKIRT9 FT 27MP399700SPACER, .406” ID X 2.10”
7RV005100KNOB, HANDLE3 28NB010100BOLT, CARRIAGE, 3/8” X 2”
8NB6545BOLT, HEX, 5/16” X 1”4 29LX2105CLIP, HITCH PIN2
9MP393500BRACKET, WHEE, 3”1 30MP371501BRACKET, WHEEL2
10MP336200STRAP, BUMPER, ROK-BAK1 31NB053400PIN, CLEVIS, 1/2” X 3-1/2”2
11NB063400RIVET, 3/16” X 1.00”4 32MP352600WHEEL, 5” X 2”2
12MP371400BUMPER, ROK-BAK1 33MX1080WASHER, FLAT, 3/8”3
13NB9645WASHER, FLAT, #104 34NB048001BOLT, SPRING GUIDE, 6”1
14MP268800BELT, B1111 35HH004000BUSHING, ROD, SKIRT6
15NB050200BOLT, CARRIAGE, 3/8” X 1-1/2”2 36MP311900SPRING, COMP., 3”2
16NB044900BOLT, HEX, 3/8” X 4”2 37HH000600SHROUD, DUST, ASM.1
17NB3265NUT, LOCK, 5/16”6 38MP262400IDLE, FLAT, 3.2”2
18MP187200SPRING, SUPPORT1 39MP399600SPACER, .406” ID X 1.95”1
19MP455100IDLER, FLAT, 5”1 40NB018600WASHER, FLAT, 3/4”3
20MP269100SPINDLE, 9.75”, ASM.2 41NB053700NUT, JAM, 3/4”2
21MP038700WHEEL, 3”2 42NB048101BOLT, SPRING GUIDE, 5”2
22NB000100BOLT, HEX, 5/16” X 1-3/4”2 43NB5520BOLT, CARRIAGE, 3/8” X 1-1/4”3
