To purchase parts for the 400BU (Deck Assembly RF032400):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

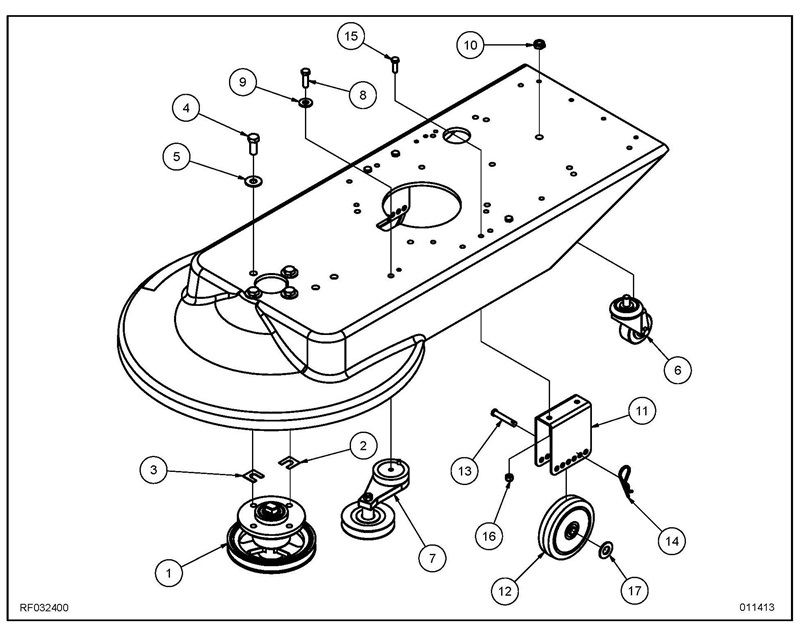

400BU_Deck Assembly Diagram RF032400

ItemPart NumberDescriptionQty ItemPart NumberDescriptionQty
1AMP107700SPINDLE, 6.75”, ASM. (21”)1 9NB3450WASHER, FLAT, 3/8”1
1BMP447700SPINDLE, 9.25”, ASM. (28”)1 10NB003100NUT, LOCK, 1/2”1
2MP197100SHIM, 1/32”1 11MP366001BRACKET, WHEEL2
3MP197000SHIM, 1/16”1 12MP105300WHEEL, 5”2
4NB6864BOLT, HEX, 1/2” X 1-1/4”4 13MP038100PIN, CLEVIS, 3/8” X 2-1/8”2
5NB9269WASHER, FLAT, 7/16”4 14LX2105CLIP, HITCH PIN2
6MP012801CASTER, 2-1/2”1 15NB6545BOLT, HEX, 5/16” X 1”4
7MP071800TENSIONER, BELT1 16NB3265NUT, LOCK, 5/16”4
8NB6044BOLT, HEX, 3/8” X 1-1/4”1 17NB028200WASHER, FLAT, 5/8”4
