To purchase parts for the 225FP (Gearbox Assembly):

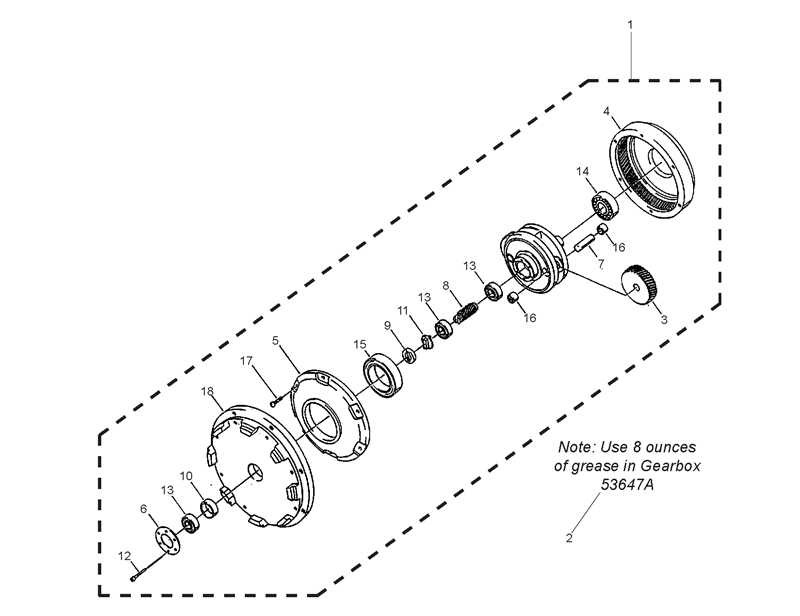

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | | Item | Part Number | Description | Qty |
| 1 | 53646A | GEARBOX, ASM. | 1 | | 10 | 58520A | SPACER, SLEEVE | 1 |
| 2 | 53647A | GREASE, TUBE, 14OZ | 1 | | 11 | 69195A | COUPLING, SHAFT | 1 |
| 3 | 54408A | GEAR, PLANET | 3 | | 12 | 80141A | SCREW, SH, #10 X 1” | 6 |
| 4 | 54856A | GEAR, RING | 1 | | 13 | 902606 | BEARING, BALL, 6002 | 3 |
| 5 | 54858A | COVER, GEARBOX | 1 | | 14 | 902654 | BEARING, BALL, 6204 | 1 |
| 6 | 56922A | RETAINER, BEARING | 1 | | 15 | 902736 | BEARING, BALL, 6010 | 1 |
| 7 | 58312A | SHAFT, PLANET | 3 | | 16 | 902737 | BEARING, NEEDLE | 6 |
| 8 | 58313A | GEAR, PINION | 1 | | 17 | 84808A | SCREW, #10 X 3/4” | 6 |
| 9 | 58314A | RETAINER, SHAFT | 1 | | 18 | 53848A | PLATE, MOUNTING | 1 |
