To purchase parts for the 225BU20E (Handle Assembly RF071600):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".

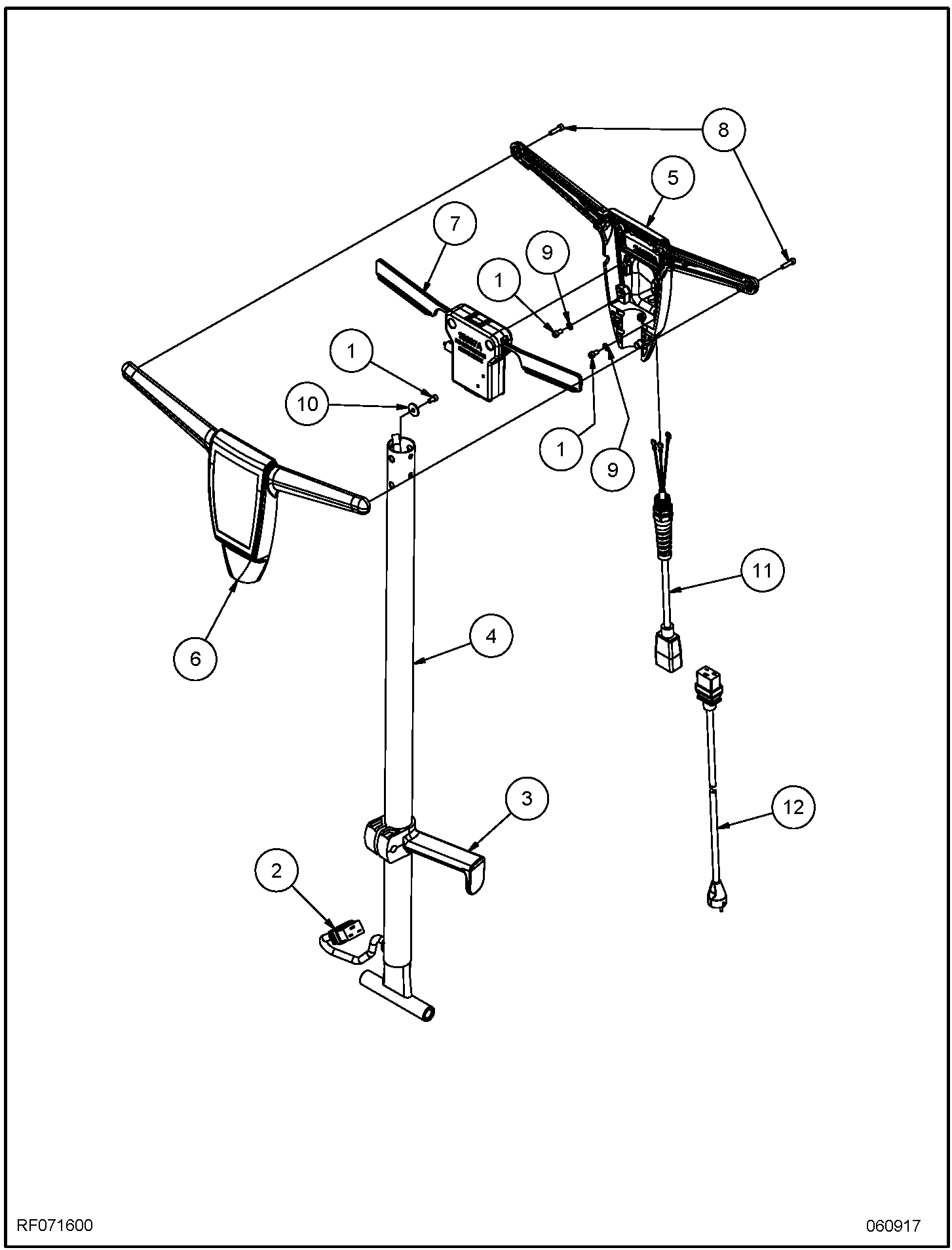

-1.png?sfvrsn=5ec2ba12_0&MaxWidth=800&MaxHeight=800&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=C2049951237DFC52C99060E83C852551FC84895B "225BU20E RF071600_Handle Assembly Diagram (007) 1")
| Item | Part Number | Description | QTY |
| 1 | 80290A | SCREW, 10-32 UNF X .375 | 3 |
| 2 | AS018000 | CORD, INTERCONNECT, EXPORT | 1 |
| 3 | 50781A | CLAMP HANDLE C2K | 1 |
| 4 | 61373A | HANDLE TUBE | 1 |
| 5 | 21075A | HANDLE, REAR - CFP | 1 |
| 6 | 21074A | HANDLE, FRONT - CFP | 1 |
| 7 | 10687A | INTERLOCK ASM. | 1 |
| 8 | 80284A | SCREW, 10-32 UNF X .75 | 6 |
| 9 | 980603 | WASHER, LK 10 EXT TOOTH | 2 |
| 10 | 80291A | WASHER, FLAT, #10 | 1 |
| 11 | MP512000 | CORD, PIGTAIL, HANDLE, EXPORT, IEC | 1 |
| 12A | MP513000 | CORD, POWER SUPPLY, CE, IEC, RED | 1 |
| 12B | MP514000 | CORD, POWER SUPPLY, AUSTRALIAN, IEC | 1 |
