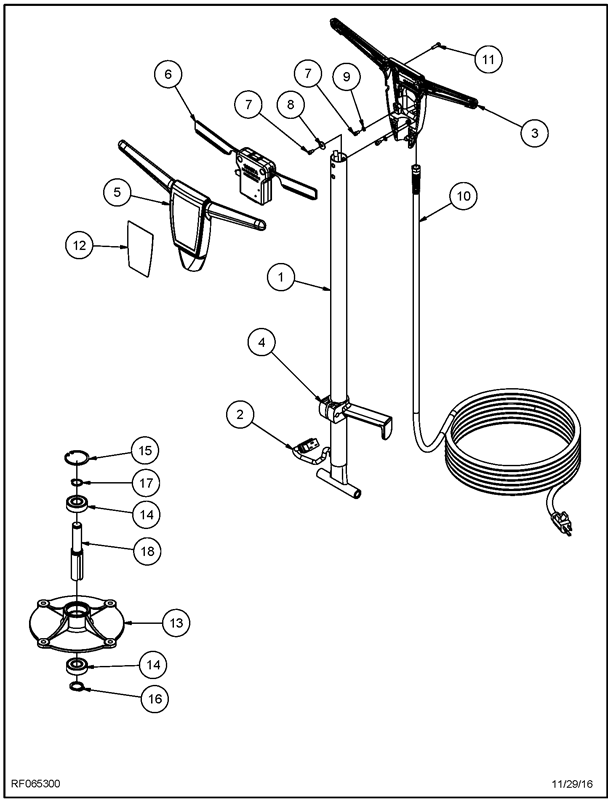

225BU Handle Assembly RF065300

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	QTY	Item	Part Number	Description	Qty
1	61373A	HANDLE TUBE	1	10	MP476300_A	CORD, POWER, 14/3 , YELLOW	1
2	40789A	CORD INTERCONNECT	1	11	80284A	SCREW, 10-32 UNF X .75	6
3	21075A	HANDLE, REAR - CFP	1	12	MP504400	DECAL, HANDLE, 225BU	1
4	50781A	CLAMP HANDLE C2K	1	13	MP504200	HOUSING, BEARING, SPINDLE, FRONT	1
5	21074A	HANDLE, FRONT - CFP	1	14	902567	BEARING BALL DOUBLE SEALED	2
6	10687A	INTERLOCK ASM.	1	15	167312	RING, RETAINER, INTERNAL	1
7	80290A	SCREW, 10-32 UNF X .375	3	16	NB018500	RING, RETAINER, 3/4”, C-STYLE, HD	1
8	80291A	WASHER, FLAT, #10	1	17	NB070200	RING, RETAINING, EXT	1
9	980603	WASHER, LK 10 EXT	2	18	MP503500	SHAFT, SPINDLE, FRONT	1
