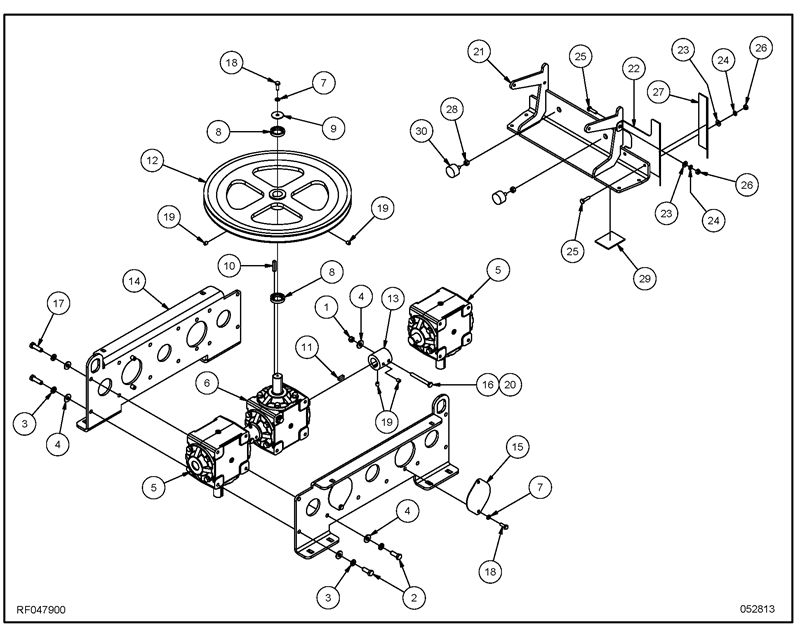

To purchase parts for the 450GP (Gearbox Assembly RF047900):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | QTY | Item | Part Number | Description | QTY | |
| 1 | NB3265 | NUT, LOCK, 5/16” | 2 | 16 | NB068400 | BOLT, HEX, 5/16” X 2-3/4” | 2 | |
| 2 | NB6042 | BOLT, HEX, 3/8” X 1” | 22 | 17 | NB6044 | BOLT, HEX, 3/8” X 1-1/4” | 2 | |
| 3 | MX1075 | WASHER, LOCK, 3/8” | 24 | 18 | NB6535 | BOLT, HEX, 1/4” X 3/4” | 5 | |
| 4 | NB9267 | WASHER, FLAT, 5/16” | 26 | 19 | NB2463 | SCREW, SET, 5/16” | 6 | |
| 5 | MP454600 | GEARBOX, 1”, R. ANGLE | 2 | 20 | SA029400 | BOLT, SHEAR, 5/16”, KIT | 1 | |
| 6 | MP454700 | GEARBOX, 1”, T-DRIVE | 1 | 21 | MP416600 | BRACKET, WEIGHT | 1 | |
| 7 | NB6110 | WASHER, LOCK, 1/4” | 5 | 22 | MP405201 | SHEILD, HEAT | 1 | |
| 8 | MP371700 | SPACER, 1.50” OD | 2 | 23 | NB3350 | WASHER, FLAT, 1/4” | 3 | |
| 9 | NB006400 | WASHER, FENDER, 1/4” | 1 | 24 | NB6110 | WASHER, LOCK, 1/4” | 3 | |
| 10 | MP326400 | KEY, 1/4” X 1-1/4” | 1 | 25 | NB6530 | BOLT, HEX, 1/4” X 1” | 3 | |
| 11 | MP250500 | KEY, 1/4” X 3/4” | 2 | 26 | MX1045 | NUT, HEX, 1/4” | 3 | |
| 12 | MP400200 | PULLEY, 1” X 15.75” | 1 | 27 | MP402000 | INSULATION, HEAT | 1 | |
| 13 | MP455000 | COUPLING, SHEAR, 5/16” | 2 | 28 | NB3260 | NUT, HEX, 5/16” | 2 | |
| 14 | MP416400 | PLATE, MOUNTING, G.BOX | 2 | 29 | MP6600 | FELT, BLACK | (2) 2” | |
| 15 | MP405101 | PLATE, COVER | 2 | 30 | MP199900 | MOUNT, VIBRATION, 5/16” | 2 |
