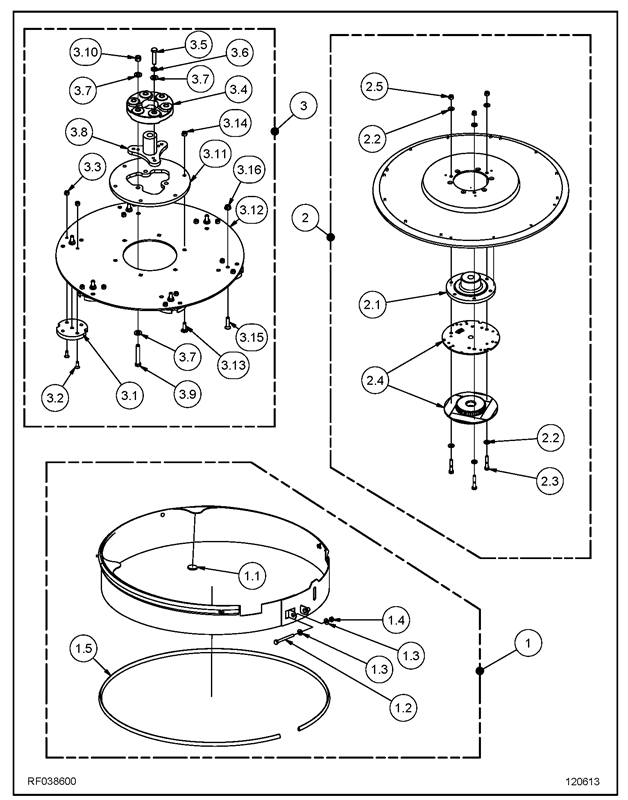

To purchase parts for the 420GP (Skirt, Driver, and Pad Holder Assembly RF038600):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | Item | Part Number | Description | Qty | |
| 1 | MP382600 | SKIRT, STEEL, 21”, ASM. | 1 | 3.3 | NB3275 | NUT, LOCK, 1/4” | 12 | |
| 1.1 | MP140000 | DOT, FELT | 2 | 3.4 | MP317700 | COUPLING, FLEXI | 1 | |
| 1.2 | NB050600 | BOLT, HEX, 1/4” X 2-1/2” | 1 | 3.5 | NB024500 | BOLT, HEX, 3/8” X 1-3/4” | 3 | |
| 1.3 | NB3350 | WASHER, FLAT, 1/4” | 2 | 3.6 | MX1075 | WASHER, LOCK, 3/8” | 3 | |
| 1.4 | MX1045 | NUT, HEX, 1/4” | 1 | 3.7 | MX1080 | WASHER, FLAT, 3/8” | 9 | |
| 1.5 | MP139800 | EDGING, WEAR | 74” | 3.8 | MP463500 | HUB, DRIVE | 1 | |
| 2 | MP446300 | PAD HOLDER, 21”, ASM. | 1 | 3.9 | NB1588 | BOLT, HEX, 3/8” X 2-1/2” | 3 | |
| 2.1 | MP175900 | DISC, FLEXI | 1 | 3.10 | NB3267 | NUT, LOCK, 3/8” | 3 | |
| 2.2 | NB025400 | WASHER, FLAT, 1/4” | 6 | 3.11 | MP463101 | PLATE, ADAPTER, DRIVER | 1 | |
| 2.3 | NB030500 | BOLT, HEX, 1/4” X 1-1/2” | 3 | 3.12 | MP463001 | PLATE, DRIVER, 21” | 1 | |
| 2.4 | MP383200 | RETAINER, PAD | 1 | 3.13 | NB5000 | BOLT, CARRIAGE, 5/16” X 1” | 6 | |
| 2.5 | NB3275 | NUT, LOCK, 1/4” | 3 | 3.14 | NB3265 | NUT, LOCK, 5/16” | 6 | |
| 3 | MP463200 | DRIVER, DIAMOND, 21”, ASM. | 1 | 3.15 | NB069100 | BOLT, CS, M8 X 35 | 6 | |
| 3.1 | MP463300 | HOLDER, LIPPAGE | 6 | 3.16 | NB3105 | NUT, FLANGE, M8 | 6 | |
| 3.2 | NB068200 | BOLT, CS, 1/4” X 3/4” | 12 |
