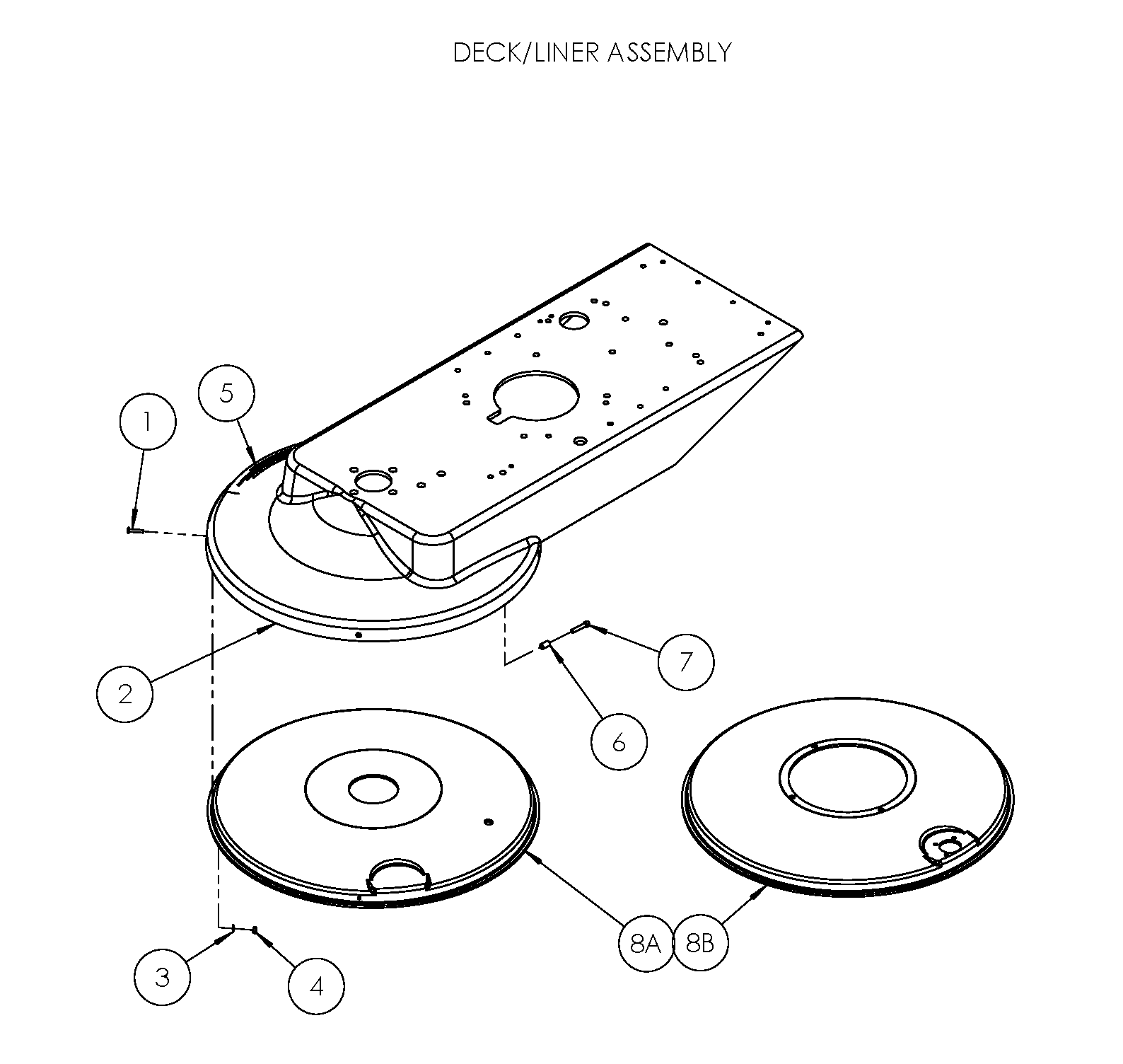

To purchase parts for the 420GP (Deck/Liner Assembly RF096700):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | 962794 | SCREW, PAN, PH, 10-24 X1 | 4 |
| 2 | MP8300 | VELCRO, HOOK, 1" W/ADHESIVE | 1 |
| 3 | NB9645 | WASHER, FLAT, SAE, #10 | 4 |
| 4 | NB9735 | NUT, NYLOK, #10-24 | 4 |
| 5 | MP007300 | DECAL, KEEP HANDS/FEET (TRILING) WHITE | 1 |
| 6 | MP139900 | BUSHING, SKIRT, SPEEDSTAR | 1 |
| 7 | NB038800 | SCREW, SHC,1/4-20 X 1 1/4 | 1 |
| 8A | MP558103 | LINER, 21", PLASTIC, POLISHER | 1 |
| 8B | MP558102 | LINER, 21", PLASTIC, POLISHER, HD |
