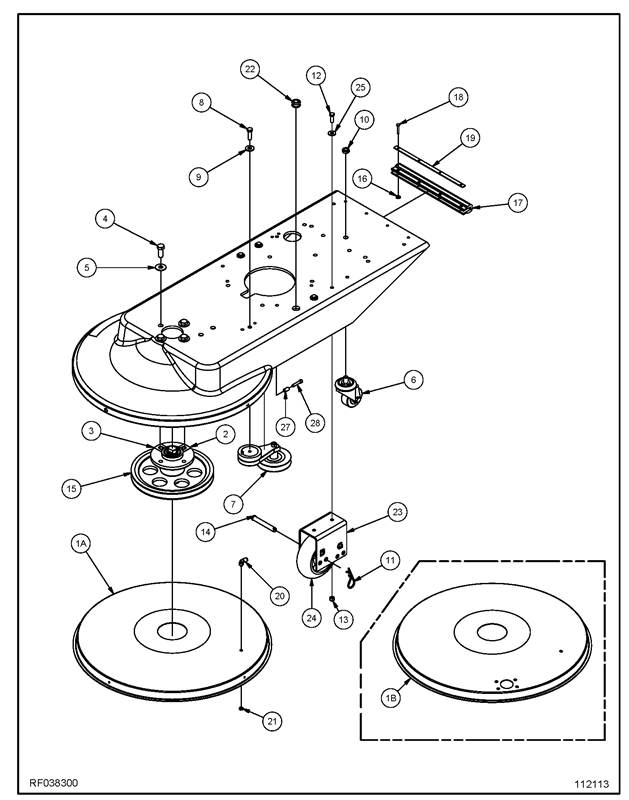

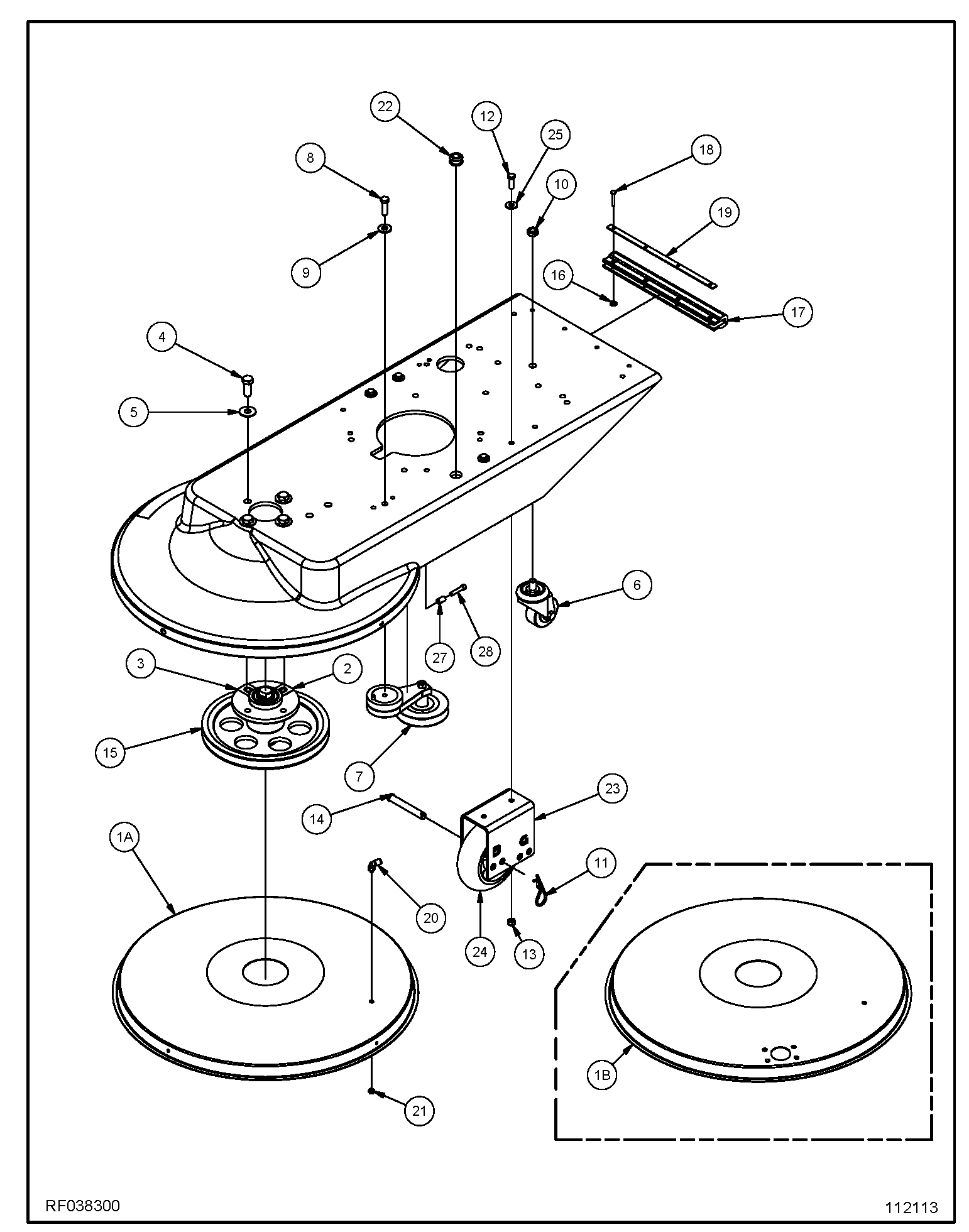

To purchase parts for the 420GP (Deck Assembly RF038300):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty | Item | Part Number | Description | Qty | |
| 1A | SA028700 | LINER, REPLACEMENT | 1 | 14 | NB053400 | PIN, CLEVIS, 1/2” X 3-1/2” | 2 | |
| 1B | SA030500 | LINER, HD, REPLACEMENT | 1 | 15 | MP379700 | SPINDLE, 9.75”, ASM. | 1 | |
| 2 | MP197100 | SHIM, 1/32” | 1 | 16 | NB9645 | WASHER, FLAT, #10 | 4 | |
| 3 | MP197000 | SHIM, 1/16” | 1 | 17 | MP371400 | BUMPER, ROK-BAK | 1 | |
| 4 | NB6864 | BOLT, HEX, 1/2” X 1-1/4” | 4 | 18 | NB063400 | RIVET, 3/16” X 1.00” | 4 | |
| 5 | NB9269 | WASHER, FLAT, 7/16” | 4 | 19 | MP336200 | STRAP, BUMPER | 1 | |
| 6 | MP012801 | CASTER, 2-1/2” | 1 | 20 | MP443300 | FITTING, ELBOW, 1/4” | 1 | |
| 7 | MP071800 | TENSIONER, BELT | 1 | 21 | NB006600 | NUT, KEPS, #10 | 1 | |
| 8 | NB6044 | BOLT, HEX, 3/8” X 1-1/4” | 1 | 22 | NB6525 | GROMMET, 1/2” ID | 1 | |
| 9 | NB3450 | WASHER, FLAT, 3/8” | 1 | 23 | MP389001 | BRACKET, WHEEL | 2 | |
| 10 | NB003100 | NUT, HEX, 1/2” | 1 | 24 | RV009600 | WHEEL, 6” X 2” | 2 | |
| 11 | LX2105 | CLIP, HITCH PIN | 2 | 25 | NB9267 | WASHER, FLAT, 5/16” | 4 | |
| 12 | NB6545 | BOLT, HEX, 5/16” X 1” | 4 | 26 | MP139900 | BUSHING, SKIRT | 1 | |
| 13 | NB3265 | NUT, LOCK, 5/16” | 4 | 27 | NB038800 | BOLT, SH, 1/4” X 1-1/4” | 1 |
