225GP Tank Assembly RF054700

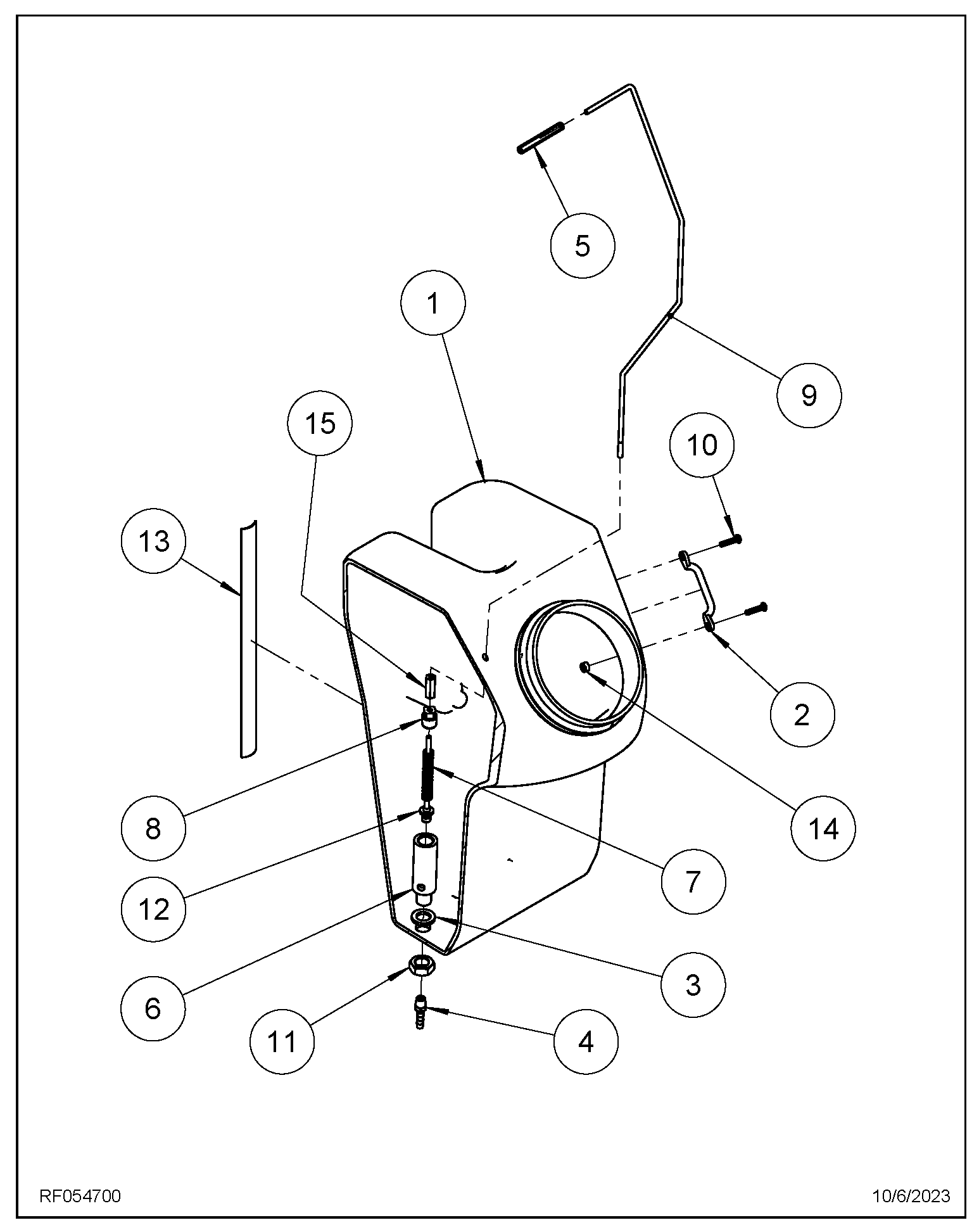

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty.
1	MP485000	TANK 2.5 GAL	1
2	RV009500	FOOTMAN LOOP	1
3	MP485600	GASKET, 5/8 ID X 1” OD	1
4	MP252000	FITTING, 1/8” MNPT X 1/4” BARB	1
5	MP485900	GRIP, 3/16 ID X 2.5L	1
6	MP485200	HOUSING, DISPENSE VALVE	1
7	MP485400	SPRING, VALVE, CLOSING	1
8	321AB	BONNET VALVE	1
9	MP485700	LINK, HANDLE, VALVE	1
10	NB049100	SCREW, BH, #10-24 X 7/8, SS	2
11	920280	NUT, JAM, HEX, 5/8-18, ZN	1
12	MP560000	PLUG ASSEMBLY, VALVE, THREADED	1
13	MP490000	TAPE, ANTI-SLIP, 1”, GRAY	12”
14	NB030700	NUT, NYLOK, #10-24	2
15	AS128700	COUPLER, #10-24 L TO #10-24 R	1
