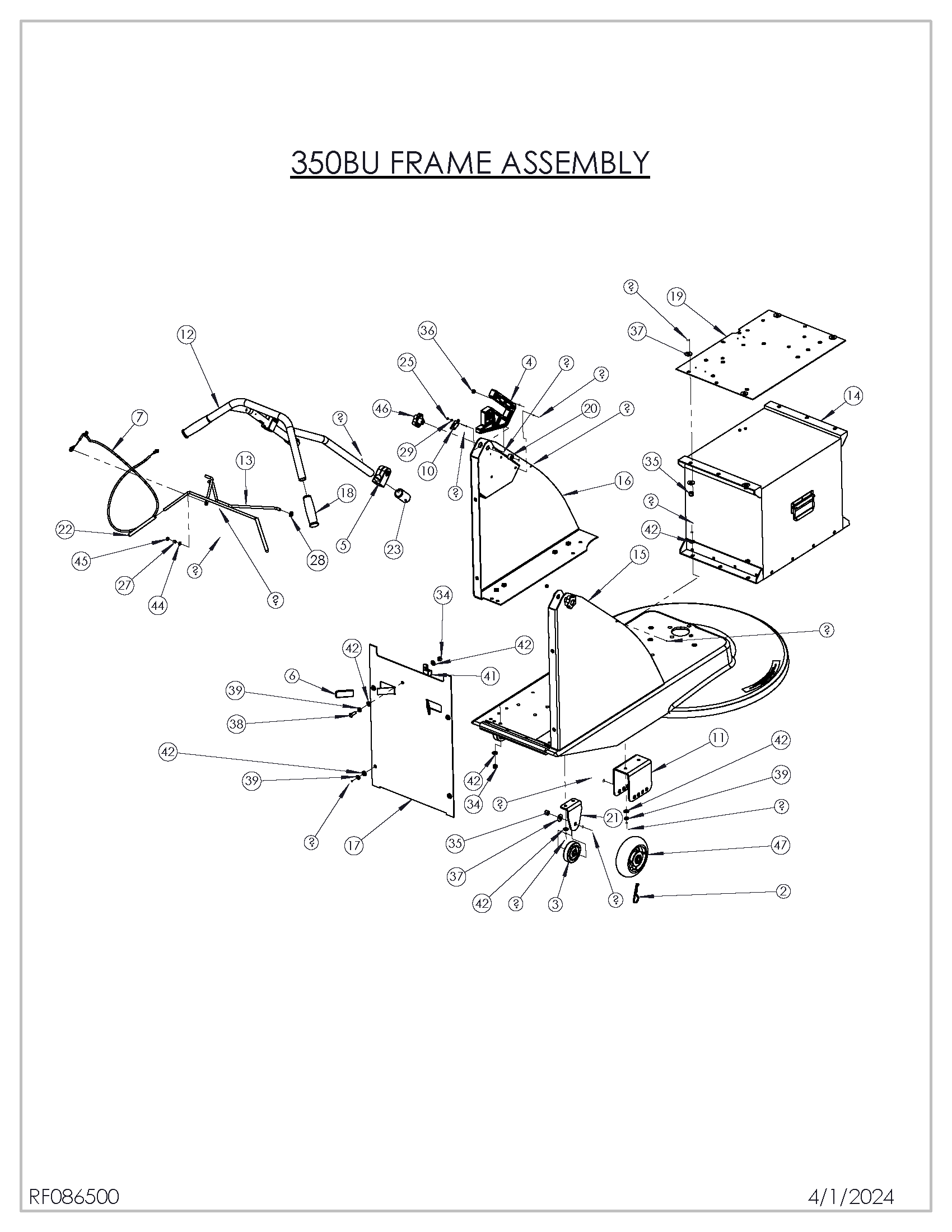

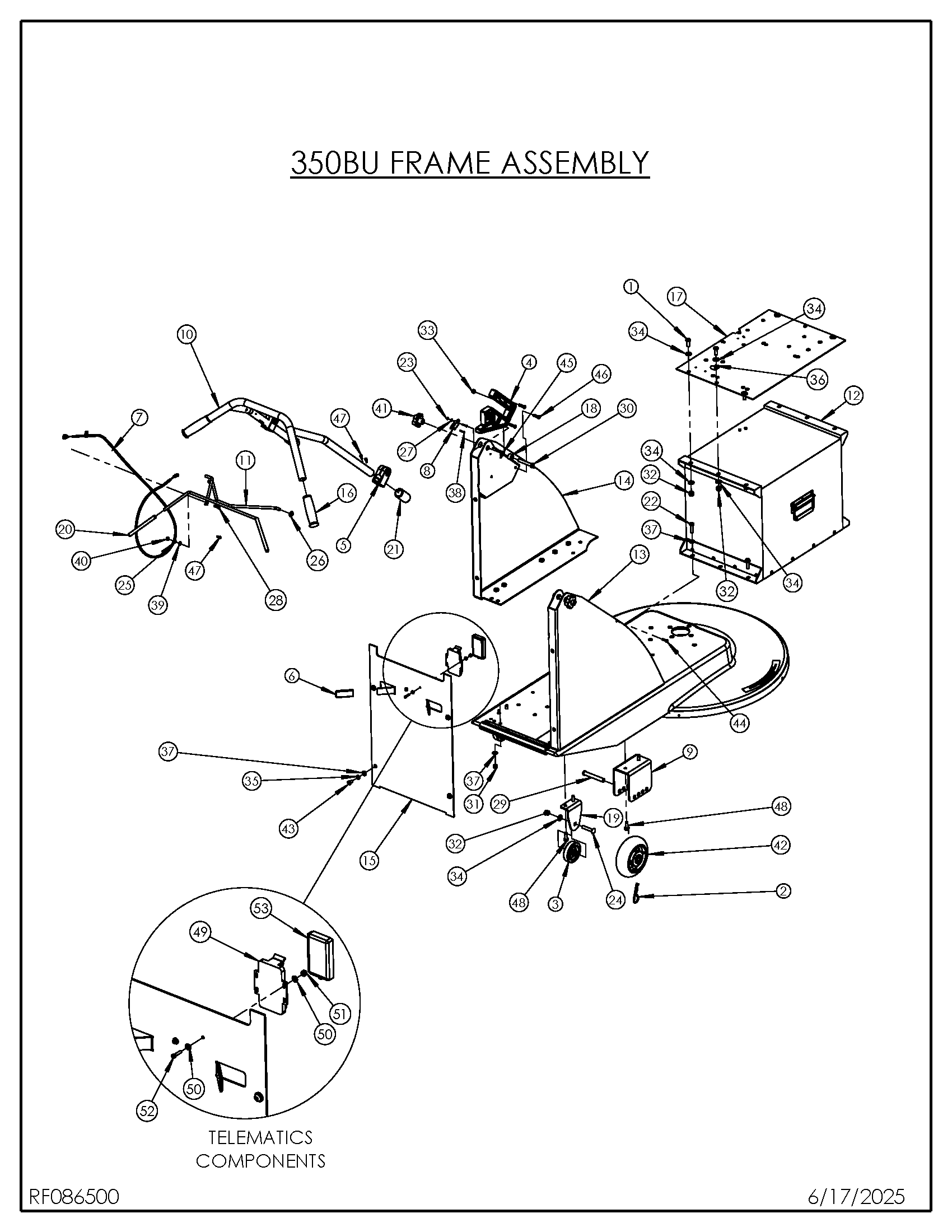

To purchase parts for the 350BU Frame Assembly (RF086500):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ITEM NO.PART NUMBERDESCRIPTIONQTYITEM NO.PART NUMBERDESCRIPTIONQTY
1962870SCREW, BH, 3/8-16 X 1, ZN427NB028300BUSHING, CABLE, BAIL1
2LX2105PIN, COTTER, 1/2 X 2 1/2228NB031500WASHER, 5/16", BONDED NEOPRENE2
3MP038700WHEEL, 3",PERFORMA, FLAT TREAD229NB048300WASHER, FLAT, #44
4MP039300PLATE, LOCK, HANDLE230NB049100SCREW, BH, #10-24 X 7/8, SS1
5MP042100BLOCK, SLIDE, HANDLE, PIVOT231NB053400PIN, CLEVIS, 1/2 X 3 1/2, CZ2
6MP077425COVER, TENSION SPRING, 2.5"232NB073100SCREW, BH, 3/8-16 X 2 1/2, SS2
7MP106500CABLE, THROTTLE CONTROL133NB086500PLUG, HOLE, 9/16 ID4
8MP197000SHIM, CAMBER, 1/16"134NB3265NUT, NYLOCK, 5/16"-185
9MP197100SHIM, CAMBER, 1/32"135NB3267NUT, NYLOCK, 3/8-166
10MP318400SWITCH, MICRO, 12V, 15A, 1" LEVER136NB3275NUT, NYLOK, 1/4-207
11MP371501BRACKET, WHEEL, 5" X 2"237NB3450WASHER, FLAT, USS, 3/810
12MP5410XXWLDMT, LI BUFFER HANDLE138NB5282SCREW, BH, 5/16-18 X 11
13MP5427XXWLDMT, LI BUFFER BAIL139NB6111WASHER, LOCK, 5/169
14MP543900BATTERY, 48V, ALIUM140nb6545BOLT, HEX, 5/16-18 X 1, ZN8
15MP545802WLDMT, SIDE PANEL R, PP141NB8130CLAMP, 3/4" ID, RETAINER1
16MP546102WLDMT, SIDE PANEL, L, PP142NB9267WASHER, FLAT, 5/16", ZN22
17MP546412COVER, REAR, 350BU, PP143NB9625SCREW, PAN, PH, #4-40 X 3/4, ZN2
18MP546600GRIP, 1" BAR, SAT3 SERIES244NB9645WASHER, FLAT, SAE, #101
19MP546901MOUNT, ELECTRONICS, ASSY, PP145NB9735NUT, NYLOK, #10-242
20MP547200AXLE, COVER246RV005100KNOB, HANDLE2
21MP549700BRACKET, WHEEL, RAW247RV009600WHEEL, PERFORMA, 6" GREY2
22MP553700GRIP, 5/16 X 524887701ASCREW, BH, 5/16-18 X 5/84
23MP553900BUSHING, HANDLE24985383ASCREW,PAN, PH, #10-32 X 3/4, ZN2
24NB001800BOLT, HEX, 5/16-18 X 1 1/4, ZN450NB046200NUT, HEX, 3/8-16, ZN, UNC2
25NB007000NUT, NYLOCK, #4-40451NB9308SCREW, BH, 1/4-20 X 16
26NB010100BOLT, CARRIAGE, 3/8-16 X 2252NB4382SCREW, DRILL KWIK, 8 x 1/25
