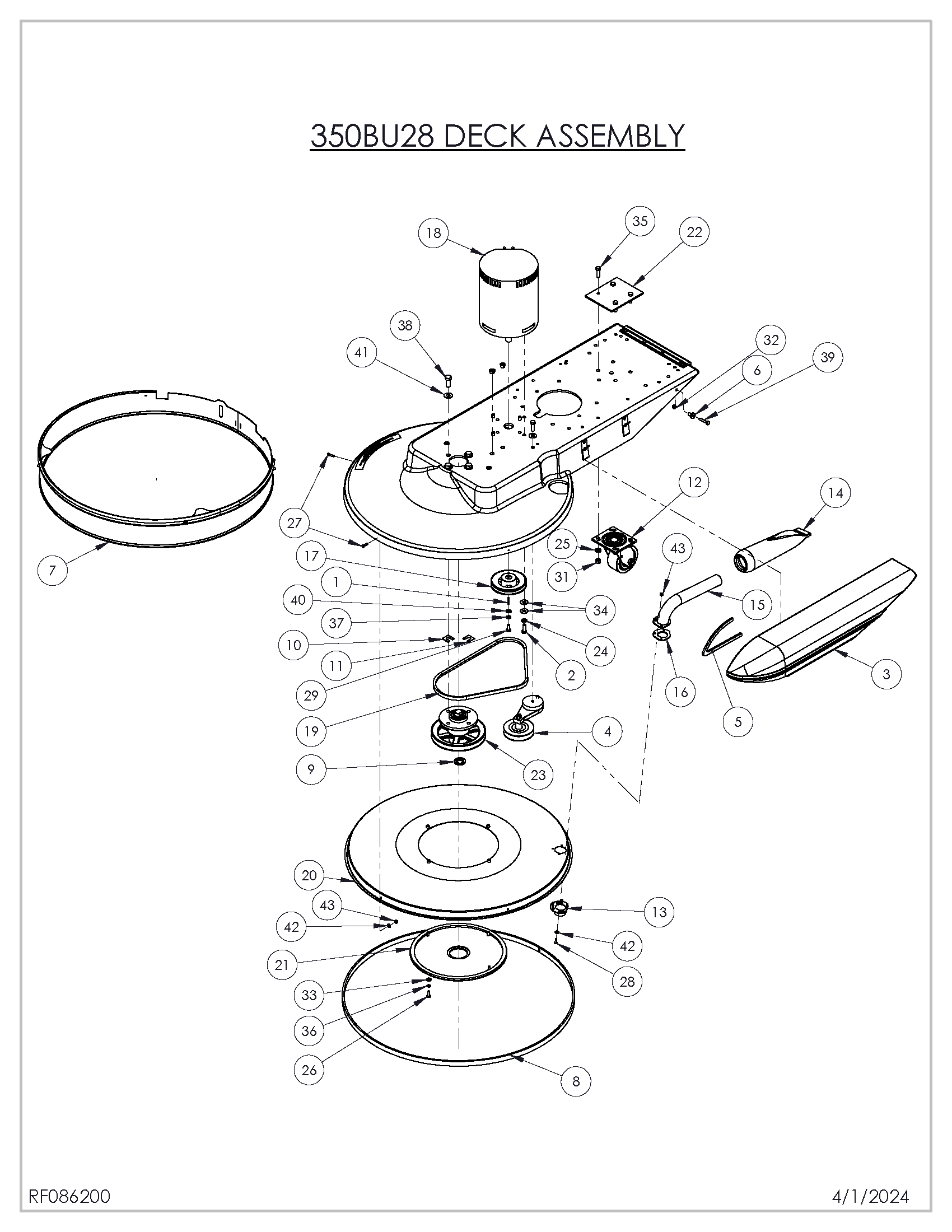

To purchase parts for the 350BU Deck Assembly (RF086200):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ITEMQTYPART NUMBERDESCRIPTION ITEMQTYPART NUMBERDESCRIPTION
14962216SCREW 3/8-16 X 1 1/4 HEX 221MP550600ASSY., PAN, 28" VAC
24962288BOLT 3/8-16 X 1.00 HEX HD 231MP550700COVER, 350BU SPINDLE
31MP7235SPINDLE, W/ 7.25" PULLEY, ASM. 241MP555801PLATE, CASTER MOUNT,  PAINTED
41MP067400COVER, BAG, VACUUM, SPEEDSTAR 254MX1075WASHER, LOCK, 3/8"
51MP071800TENSIONER, BELT, W/4" PULLEY 2610NB3267NUT, LOCK, 3/8", NC
61.1 ftMP075200_BFOAM, SKINNED, 1/2" x 38" x 1/4" THK 2715NB3350WASHER, FLAT, 1/4", CZ
71MP079800STUD, SUPPORT, COVER, BAG, DUST 2815NB3450WASHER, FLAT,USS, 3/8"
88.0 ftMP139600FELT, POLYESTER, 28 OZ, BLK 291NB6044SCREW, CAP, 3/8 X 1 1/4
91MP139900BUSHING, SKIRT, STEEL 309NB6110WASHER, LOCK, 1/4"
101MP197000SHIM, CAMBER, 1/16" 315NB6111WASHER, LOCK, 5/16"
111MP197100SHIM, CAMBER, 1/32" 324NB6864BOLT, HEX, 1/2"  X 1 1/4", NC
121MP411700CASTER, 4", SWIVEL, 400 LB  CAP. 331NB9000SCREW, CAP, 1/4"-20 X 1 1/2", GD5
131MP467600SCOOP, VACUUM, WELDMENT 3421NB9267WASHER, FLAT, 5/16"
141MP469300BAG, DUST, 12" 354NB9269WASHER, FLAT, 7/16
151MP469400GROMMET, 1.5 ID X 2.0 OD, X 1.84 W 361NB9500SCREW, CAP, 5/16-24 X 1 1/4
161MP469500TUBE, DUST, 90 DEG, WELDMENT 3710NB9645WASHER, FLAT, #10
171MP496500GASKET, DUST TUBE 3810NB9735NUT, LOCK, 10-24, NYLON
181MP537000PULLEY, AK49, 4.75" OD W/ 3/4 BORE 394NB019100BOLT, HEX, 1/4-20 X 3/4, GD 5
191MP537100MOTOR, 5 HP, PM, BRUSHED, 2000 RPM 405NB033300SCREW, BH, 10-24 X 7/8
201MP537301DECK, 28", DUST COL., W/CLIPS 411NB038800SCREW, SOCKET HEAD, 1/4-20 X 1-1/4 W/THREAD LOCK
211MP537800BELT, AX-39 423NB049200SCREW, BH, 10-24 X 5/8, SS
