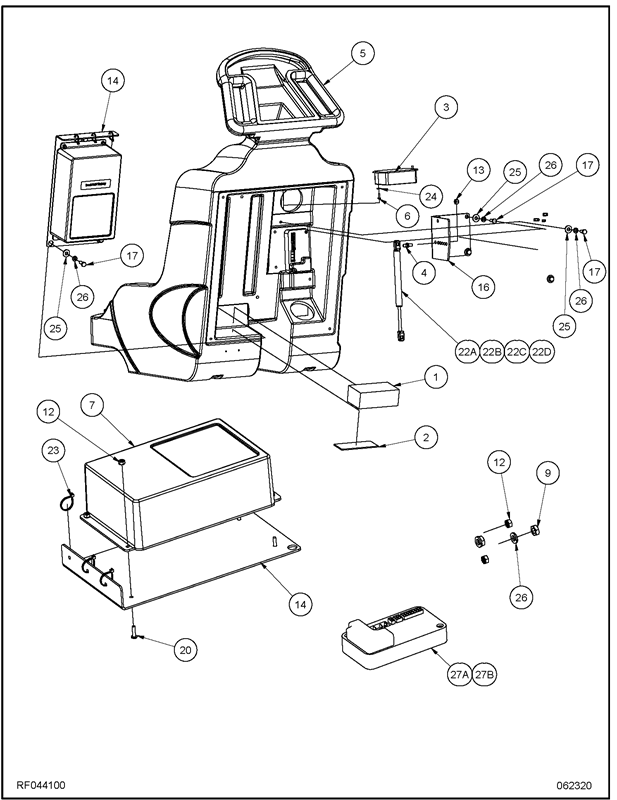

300BU Main Rear Assembly RF044100

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	MP530000	ASSY, BU3002728 COUNTER WEIGHT (BU2728 ONLY)	1	17	NB9745	SCREW, CAP, 5/16"-18 X 3/4"	9
2	MP6600	VELCRO, HOOK, 1" w/ADHESIVE (BU2728 ONLY)	5 in.	20	NB040400	SCREW, PAN HEAD, #10-32 UNF, X 3/4	4
3	MP530100	ASSY, TELEMATICS CU (OPTIONAL)	1	22A	MP415200	SPRING, GAS (20")	1
4	MP206000	BALL, STUD, 10MM	1	22B	MP434500	SPRING, GAS (24") DOMESTIC	1
5	MP425601	BODY, 300BU, BLACK	1	22D	MP505500	SPRING, GAS, (27"/28") (24" AUSTRALIAN)	1
6	NB007400	BOLT, PHILLIPS PAN HD, #8-32 X 1/2	2	23	NB6035	TIE, NYLON, 1/8" X 4", BLK	3
7	MP501100	CHARGER, 36V, 25A, UNIVERSAL	2	24	NB9720	WASHER, FLAT, #8	2
9	NB005700	NUT, 5/16-24, JAM	2	25	NB9267	WASHER, FLAT, 5/16"	9
12	NB006600	NUT, KEPS, 10-32	6	26	NB6111	WASHER, LOCK, 5/16"	11
13	NB3265	NUT, LOCK, 5/16"-18, NC	1	27A	MP409402	CONTROLLER, TRACTION, 36V, BU2728"	1
14	MP423101	PLATE, MOUNT, CHARGER	1	27B	MP409401	CONTROLLER, TRACTION, 36V, PROGRAMMED	1
16	MP422901	PLATE, MOUNT, SHOCK	1
