300BU Head, Axle Bracket Assembly 27 inch/28 inch

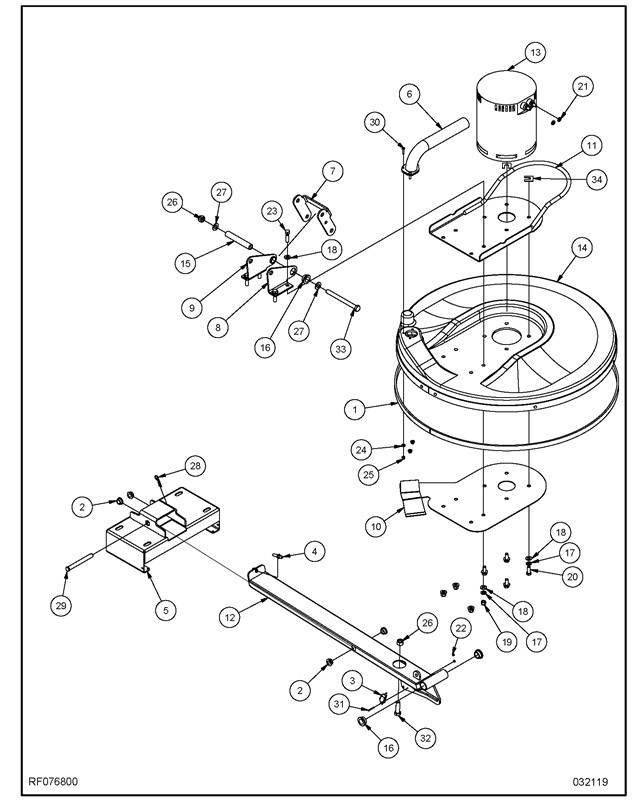

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	Part Number	Description	Qty	Item	Part Number	Description	Qty
1	MP139600_300BU27	FELT, POLYESTER, 28 OZ, BLK	91.86 in	18	MX1080	WASHER, FLAT, 3/8	12
2	MP237100	BUSHING, FLANGED, BRONZE, 1/2I.D. X 3/8L	4	19	NB3267	NUT, LOCK, 3/8", NC	4
3	MP318400	SWITCH, MICRO, 12V, 15A, 1" LEVER	1	20	NB6042	SCREW, CAP, 3/8" X 1"	4
4	MP414300	BALL, STUD, LONG, 10MM	1	21	NB6111	WASHER, LOCK, 5/16"	2
5	MP423700	BRACKET, MOUNT, AXLE/ TRANSAXLE, WLDMT.	1	22	NB007000	NUT, LOCK, NYLON, 4-40	2
6	MP469500	TUBE, DUST, 90 DEG, WELDMENT	1	23	NB9575	BOLT, HEX, 3/8-16 X 1 1/2	4
7	MP524611	BPLT, BU27 LINK	1	24	NB9645	WASHER, FLAT, #10	3
8	MP524711	PIVOT BRACKET SIDE R	1	25	NB9735	NUT, LOCK, 10-24, NYLON	3
9	MP524712	PIVOT BRACKET SIDE L	1	26	NB014600	NUT, LOCK, 1/2 - 13	2
10	MP525210	PLT, SHROUD STIFF	1	27	NB018000	WASHER, FLAT, NYLON, 1/2"	2
11	MP525510	WLDMT, MOTOR PLT MOUNT	1	28	NB025600	PIN, PRESTO, 3/32 X 1 5/8, SS	1
12	MP526000	WLDMT, BU27 SUSPENSION	1	29	NB039704	PIN, CLEVIS	1
13	MP526300	MOTOR, 36VDC, 2.5HP, 1500 RPM	1	30	NB049100	SCREW, BH, 10-24 X 7/8, SS	3
14	MP526500	ASSY, SHROUD BU27	1	31	NB051000	SCREW, MACH., PAN HD., 4-40 X 1, PHILLIPS	2
15	MP526700	TUBE, SPACER 3/4OD x 1/2 ID	1	32	NB068900	BOLT, HEX, TAP, 1/2-20 X 1-3/4"	1
16	MP528001	BUSHING, IGUS, MFI-1216-08	4	33	NB074100	SCREW, CAP, HH, 1/2-13 X 5 1/2	1
17	MX1075	WASHER, LOCK, 3/8"	8	34	MP197000	SHIM, CAMBER, 1/16”	2
