300BU 27-/28- Main Bottom Assembly RF093200

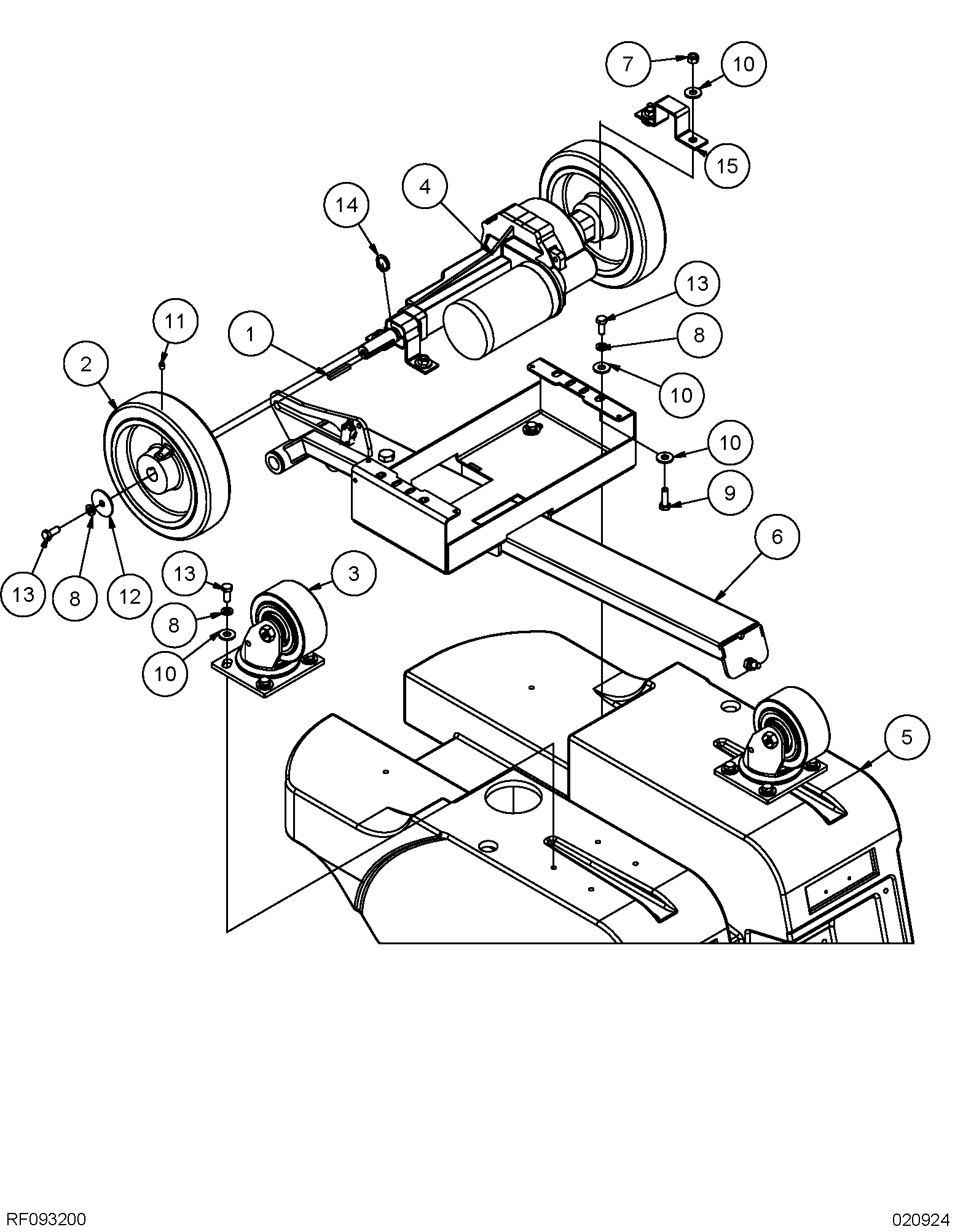

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION
1	2	BA003300	KEY, 3/16 X 1.50
2	2	MP409800	WHEEL, 8"X2", DRIVE, 3/4"BORE, GREY
3	2	MP411700	CASTER, 4", SWIVEL, 400 LB CAP.
4	1	MP555500	TRANSAXLE, MARK 400
5	1	MP425601	BODY, 300BU, BLACK
6	1	MP526100	ASSY, BU27 SUSPENSION
7	5	NB3265	NUT, LOCK, 5/16"-18, NC
8	33	NB6111	WASHER, LOCK, 5/16"
9	4	NB6545	SCREW, CAP, HH, 5/16"-18 X 1"
10	35	NB9267	WASHER, FLAT, 5/16"
11	4	NB9302	SCREW, SET, 1/4-20 X 3/8, KNURL CUP POINT
12	3	NB9505	WASHER, FLAT, 5/16" X 1 1/2"
13	29	NB9745	SCREW, CAP, 5/16"-18 X 3/4"
14	2	NB018500	RING, RETAINER, 3/4", C-STYLE, HD
15	2	PG001801	BRACKET, TRANSAXLE, POWERGLIDE, PAINTED
