300BU 27-/28- Main Front Assembly RF090900

Call Us: 800-367-3550
International +1-336-372-8080

To purchase parts for the 300BU (27"/28" Main Front Assembly RF090900):

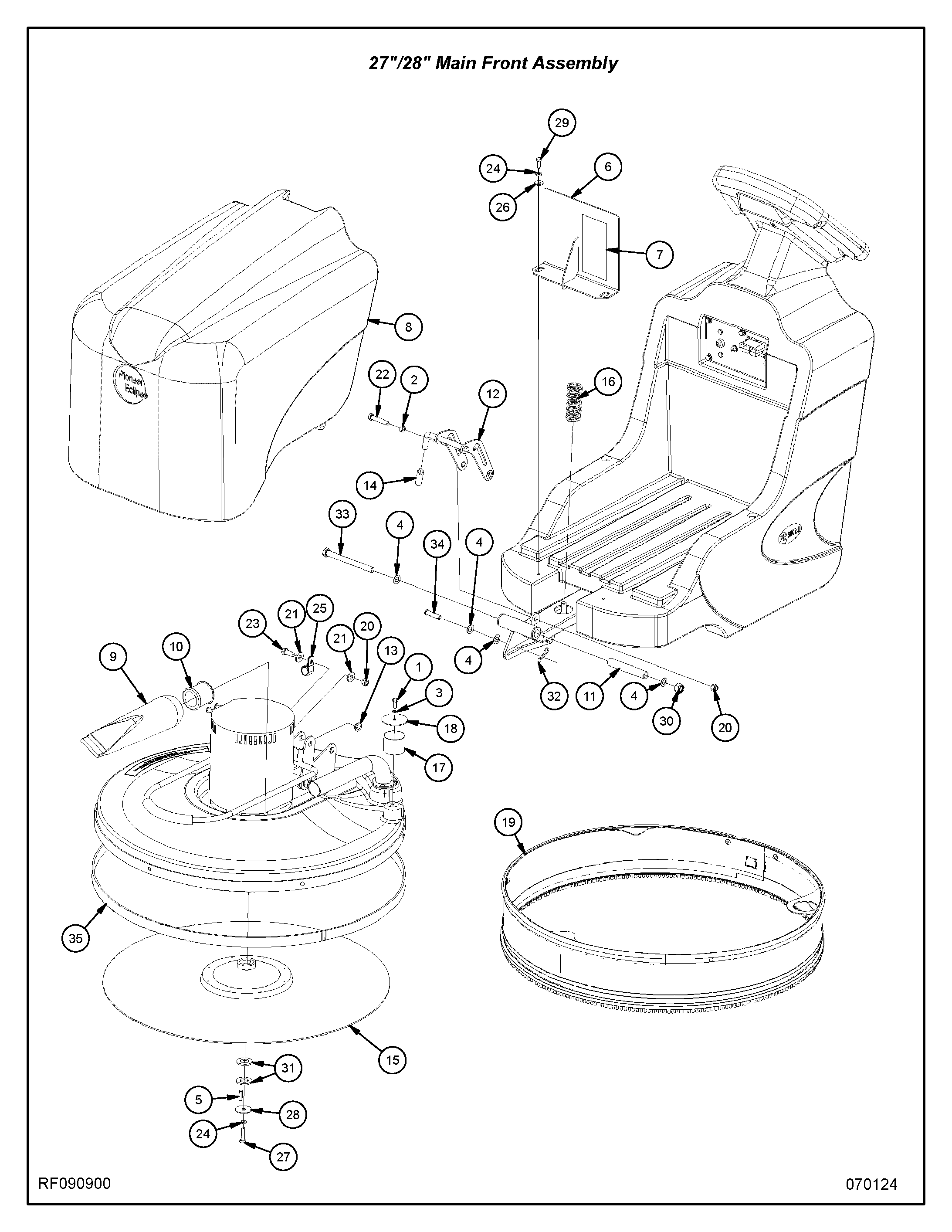

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

Item	QTY	Part Number	Description
1	1	920148	NUT, 3/8-16 JAM
2	4	980673	WASHER FLT 1/2 ID X 7/8 OD
3	1	BA003200	KEY, 3/16 X 1
4	1	MP423900	RETAINER, BATTERY, WELDMENT
5	1	MP429600	DECAL, BATTERY CONN., 36V
6	1	MP432700	COVER, BATTERY, 300BU, ASM.
7	1	MP469300	BAG, DUST, 12"
8	1	MP469400	GROMMET, 1.5 ID X 2.0 OD, X 1.84 W
9	1	MP554700	ASSY, SKIRT, RETAINED
10	1	MP538092	FELT, 4mm BLACK POLYESTER
11	1	MP526700	TUBE, SPACER 3/4OD x 1/2 ID
12	1	MP527810	WLDMT, 300BU27 LATCH
13	4	MP528002	BUSHING, IGUS, JFI-0809-04
14	1	MP528700	GRIP, YELLOW, 1/2" ID x 3.5" LONG
15	1	MP529400	ASSY, 2728 PAD HOLDER
16	1	MP530500	SPRING, COMP., .1.086 ID X 1.46 OD X 3.5" L.
17	1	MX1045	NUT, HEX, 1/4-20
18	2	NB3267	NUT, LOCK, 3/8", NC
19	1	NB3350	WASHER, FLAT, 1/4", CZ
20	2	NB3450	WASHER, FLAT, 3/8"
21	1	NB4791	SCREW, CAP, 3/8" X 2"
22	1	NB6042	SCREW, CAP, 3/8" X 1"
23	3	NB6111	WASHER, LOCK, 5/16"
24	1	NB8130	CLAMP, 3/4" ID, RETAINER
25	2	NB9267	WASHER, FLAT, 5/16"
26	1	NB9500	SCREW, CAP, 5/16-24 X 1 1/4
27	1	NB9505	WASHER, FLAT, 5/16" X 1 1/2"
28	2	NB9745	SCREW, CAP, 5/16"-18 X 3/4"
29	1	NB014600	NUT, LOCK, 1/2 - 13
30	2	NB018600	WASHER, FLAT, 3/4"
31	1	NB025600	PIN, PRESTO, 3/32 X 1 5/8, SS
32	1	NB039704	PIN, CLEVIS
33	1	NB050600	BOLT, HEX, TAP, 1/4-20 x 2-1/2"
34	1	NB074100	SCREW, CAP, HH, 1/2-13 X 5 1/2
35	1	MP554401	PLATE, SKIRT RETAINER
36	1	MP554200	TUBE, SKIRT RETAINER
37	1	980657	WASHER, LOCK 1/4"
38	1	85806A	SCREW 1/4-20 X 3/4 HX SZ CAP
