To purchase parts for the 300BU (27"/28" Main Front Assembly 2 RF076900):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

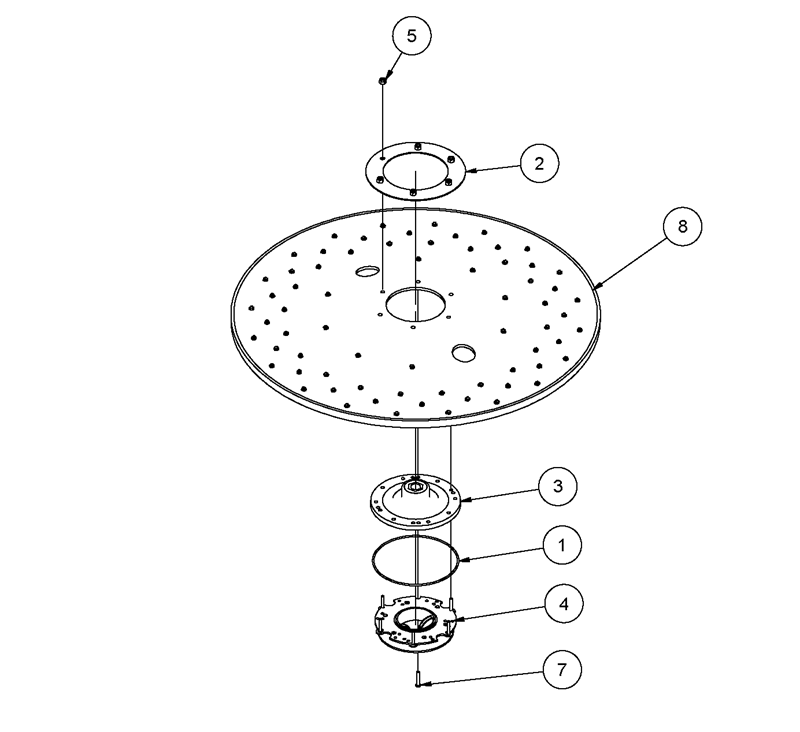

PE300BU__2728 Main Front Assembly Diagram RF076900

ItemPart NumberDescriptionQTY
1MP066300RING, SPACER, CENTER LOK II1
2MP196300RING, RELIEF, STRESS, LARGE, PADHOLDER1
3MP211500FLEXI-DISC, W/O LIP, .75" BORE1
4MP432400RETAINER, PAD, BLUE, BIG-MOUTH1
5NB3275NUT, LOCK, 1/4"6
6NB3350WASHER, FLAT, 1/4", CZ6
7NB9319SCREW, BH, 1/4-20 X 1 1/4"6
8SA004000PADHOLDER, 28", W/STUDS ONLY1
